详细介绍
|
产品材料：WCB、CF3、CF8、CF3M、CF8M
|
|
产品规格：DN50~1200、PN10~40
|
|
产品简介：
|
|

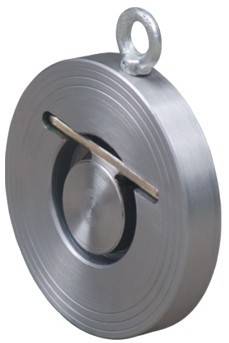

H74对夹单瓣旋启式止回阀
H74 Clip-on single valve flap swing type check valve
主要尺寸 Main dimensions
|
通径
DN（mm)
|
L
|
D1
|
D
|
|
PN1.0、1.6MPa
|
PN2.5、4.0MPa
|
1.0MPa
|
1.6MPa
|
2.5MPa
|
4.0MPa
|
|
50
|
19
|
19
|
25
|
109
|
109
|
109
|
109
|
|
65
|
19
|
19
|
38
|
129
|
29
|
129
|
129
|
|
80
|
19
|
19
|
46
|
144
|
144
|
144
|
144
|
|
100
|
19
|
19
|
71.5
|
164
|
164
|
170
|
170
|
|
125
|
19
|
19
|
95
|
194
|
194
|
196
|
196
|
|
150
|
19
|
29
|
114
|
220
|
220
|
226
|
226
|
|
200
|
29
|
29
|
140
|
275
|
275
|
286
|
293
|
|
250
|
29
|
38
|
188
|
330
|
331
|
343
|
355
|
|
300
|
38
|
51
|
216
|
380
|
386
|
403
|
420
|
|
350
|
44
|
51
|
263
|
440
|
446
|
460
|
477
|
|
400
|
51
|
51
|
305
|
491
|
495
|
517
|
549
|
|
450
|
60
|
76
|
356
|
541
|
558
|
567
|
574
|
|
500
|
64
|
83
|
406
|
596
|
620
|
622
|
626
|
|
600
|
70
|
90
|
482
|
698
|
732
|
734
|
745
|
|
700
|
80
|
90
|
562
|
813
|
804
|
831
|
-
|
|
800
|
90
|
100
|
464
|
918
|
912
|
942
|
-
|
|
900
|
90
|
100
|
738
|
1018
|
1012
|
1040
|
-
|
|
1000
|
100
|
120
|
846
|
1124
|
1126
|
1155
|
-
|
|
