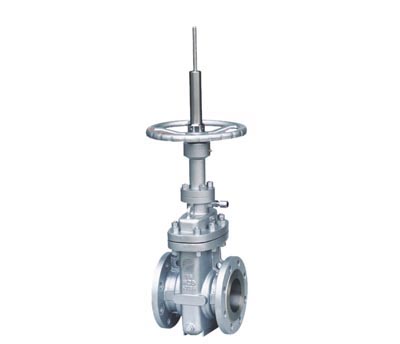

平板闸阀
详细介绍
主要零件材料
|
零件名称
|
使用条件
|
|
|
Z43HF-16C(25,40,64,100)
|
KZ43HF--16C(25,40,64,100)
|
|
|
石油、水、 H2S和CO2总含量为20-600mg/m3
|
石油、 H2S和C02,总含量>500mg/m3
|
|
|
阔体阀盖
|
低合金钢、碳素钢
|
|
|
阀板
|
低合金钢 (表面抗蚀处理)
|
不锈钢 (表面堆焊钴基合金)
|
|
阀杆
|
低合金钢 (表面抗蚀处理)，不锈钢
|
318
|
|
阀座
|
碳钢 (表面抗蚀处理)球墨铸铁(表面抗蚀处理)
|
不锈钢 (表面堆焊钴基合金)
|
|
O型密封圈
|
丁睛橡胶
|
氟橡胶
|
|
填料软密封
|
填充四氟
|
|
技术规范
|
公称压力
|
1.6MPa
|
2.5MPa
|
|
壳体试验
|
2.4MPa
|
3.75MPa
|
|
高压密封试验
|
1.76MPa
|
2.75MPa
|
|
上密封试验
|
1.76MPa
|
2.75MPa
|
|
低压密封试验
|
0.6MPa
|
0.6 MPa
|
|
适用介质
|
水石油油品天然气等
|
|
|
适用温度
|
-29-+121℃
|
|
注： 1．阀门电动装置一般按表中配置，亦可根据用户要求或实际使用工况分别配置。
2．如需方要求的法兰密封面型式与表中规定不同，可按需方要求生产。
3．阀门主体材料也可按下表中所列材料供货。
2．如需方要求的法兰密封面型式与表中规定不同，可按需方要求生产。
3．阀门主体材料也可按下表中所列材料供货。
|
中国 GB
|
0Cr18Ni9
|
00Cr18Ni9
|
0Cr18Ni12Mo2
|
00Cr17Ni14Mo2
|
|
美国 ASTM
|
304
|
304L
|
316
|
316L
|
|
中国 GB
|
ZGOCr18Ni9
|
ZGOCr18Ni12M02
|
ZG00Cr18Ni9
|
ZG00Cr17Ni14M02
|
|
美国 ASTM
|
CF8
|
CF8M
|
CF3
|
CF3M
|
|

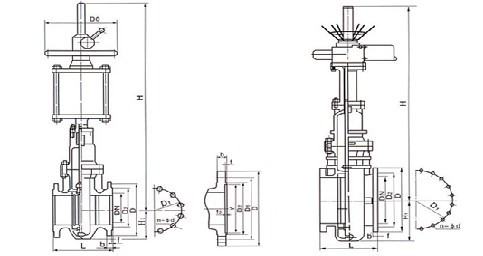

公称通径
DN |
尺 寸(mm)
|
Hz
|
||||||||
|
L
|
D
|
Dl
|
b
|
Z-0d
|
D2
|
D0
|
电动装置型号
|
手动
|
电动
|
|
|
PN1.6(16) Z43HF-16C KZ43YF-16C Z43XF Z43WF Z943HF-16C KZ943YF-16C
|
||||||||||
|
50
|
178
|
160
|
125
|
16
|
4-18
|
100
|
200
|
|
400
|
450
|
|
65
|
191
|
180
|
145
|
18
|
4-18
|
120
|
200
|
|
520
|
585
|
|
80
|
203
|
195
|
160
|
20
|
8-18
|
135
|
250
|
|
640
|
720
|
|
100
|
229
|
215
|
180
|
20
|
8-18
|
155
|
250
|
|
700
|
800
|
|
150
|
267
|
280
|
240
|
24
|
8-23
|
210
|
300
|
Z20-18/80
|
1050
|
1200
|
|
200
|
292
|
335
|
295
|
26
|
12-23
|
265
|
350
|
Z20-18-80
|
1400
|
1600
|
|
250
|
330
|
405
|
355
|
30
|
12-25
|
320
|
400
|
Z30-18/80
|
1750
|
2000
|
|
300
|
356
|
460
|
410
|
30
|
12-25
|
375
|
450
|
Z45-18/80
|
1950
|
2100
|
|
350
|
381
|
520
|
470
|
34
|
16-25
|
435
|
500
|
Z60-18/80
|
2275
|
2450
|
|
400
|
406
|
580
|
525
|
36
|
16-30
|
485
|
550
|
Z90-18/80
|
2600
|
2800
|
|
450
|
432
|
640
|
585
|
40
|
20-30
|
545
|
550
|
|
2925
|
3150
|
|
500
|
457
|
705
|
650
|
44
|
20-34
|
608
|
600
|
Z120-18/80
|
3250
|
3500
|
|
N2.5(25) Z43HF-25 KZ43YF-25 Z43XF Z43WF Z943HF-25 KZ943YF-25
|
||||||||||
|
50
|
178
|
160
|
125
|
20
|
4-18
|
100
|
200
|
|
|
|
|
65
|
191
|
180
|
145
|
22
|
8-18
|
120
|
200
|
|
|
|
|
80
|
203
|
195
|
160
|
22
|
8-18
|
135
|
250
|
|
|
|
|
100
|
229
|
230
|
190
|
24
|
8-23
|
160
|
250
|
|
|
|
|
150
|
267
|
300
|
250
|
30
|
8-25
|
218
|
300
|
Z20-18/80
|
|
|
|
200
|
292
|
360
|
310
|
34
|
12-25
|
278
|
350
|
Z30-18/80
|
|
|
|
250
|
330
|
425
|
370
|
36
|
12-30
|
332
|
400
|
Z45-18/80
|
|
|
|
300
|
356
|
485
|
430
|
40
|
16-30
|
390
|
450
|
Z60-18/80
|
|
|
|
350
|
38l
|
550
|
490
|
44
|
16-34
|
448
|
500
|
Z90-18/80
|
|
|
|
400
|
406
|
610
|
550
|
48
|
16-34
|
505
|
550
|
Z120-18/80
|
|
|
|
450
|
432
|
660
|
600
|
50
|
20-34
|
555
|
550
|
Z180-18/80
|
|
|
|
500
|
457
|
730
|
660
|
52
|
20-41
|
610
|
600
|
Z180-18/80
|
|
|
|
PN4.0(40) Z43HF-40 KZ43YF-40 Z43WF Z43WF Z943HF-40 KZ943YF-40
|
||||||||||
|
50
|
216
|
160
|
125
|
20
|
4-18
|
100
|
250
|
|
|
|
|
65
|
241
|
185
|
145
|
22
|
8-18
|
120
|
250
|
|
|
|
|
80
|
283
|
195
|
160
|
22
|
8-18
|
135
|
300
|
|
|
|
|
100
|
305
|
230
|
190
|
24
|
8-23
|
160
|
300
|
|
|
|
|
150
|
403
|
300
|
250
|
30
|
8-25
|
218
|
350
|
Z30-18/80
|
|
|
|
200
|
419
|
375
|
320
|
38
|
12-30
|
282
|
400
|
Z30-18/80
|
|
|
|
250
|
457
|
445
|
385
|
42
|
12-34
|
345
|
450
|
Z45-18/80
|
|
|
|
300
|
502
|
510
|
450
|
46
|
16-34
|
408
|
500
|
Z60-18/80
|
|
|
|
350
|
762
|
570
|
510
|
52
|
16-34
|
465
|
550
|
Z90-18/80
|
|
|
|
400
|
838
|
655
|
585
|
58
|
16-41
|
535
|
600
|
Z180-18/80
|
|
|
|
450
|
914
|
680
|
610
|
60
|
20-41
|
560
|
600
|
Z180-18/80
|
|
|
|
500
|
99l
|
755
|
670
|
62
|
20-48
|
612
|
680
|
Z250-18/80
|
|
|
|
公称通径
DN |
尺寸(mm)
|
Hz
|
||||||||
|
L
|
D
|
D1
|
b
|
Z-od
|
D2
|
D0
|
电动装置型号
|
手动
|
电动
|
|
|
PN6.4(64) Z43HF-64 KZ43YF-64 Z43XF Z43WF Z943HF-64 KZ943YF-64
|
||||||||||
|
50
|
216
|
175
|
135
|
26
|
4-23
|
105
|
300
|
|
|
|
|
65
|
241
|
200
|
160
|
28
|
8-23
|
130
|
300
|
|
|
|
|
80
|
283
|
210
|
170
|
30
|
8-23
|
140
|
350
|
|
|
|
|
100
|
305
|
250
|
200
|
32
|
8-25
|
168
|
350
|
|
|
|
|
150
|
403
|
340
|
280
|
38
|
8-34
|
240
|
400
|
Z30-18/80
|
|
|
|
200
|
419
|
405
|
345
|
44
|
12-34
|
300
|
450
|
Z45-18/80
|
|
|
|
250
|
457
|
470
|
400
|
48
|
12-41
|
352
|
500
|
Z90-18/80
|
|
|
|
300
|
502
|
530
|
460
|
54
|
16-41
|
412
|
550
|
Z120-18/80
|
|
|
|
350
|
762
|
595
|
525
|
60
|
16-41
|
475
|
550
|
Z180-18/80
|
|
|
|
400
|
838
|
670
|
585
|
66
|
16-48
|
525
|
600
|
Z250-18/80
|
|
|
|
450
|
914
|
|
|
|
|
|
600
|
Z250-18/80
|
|
|
|
500
|
991
|
800
|
705
|
70
|
20-54
|
640
|
680
|
Z350-18/80
|
|
|
|
PN10(100) Z43HF-100 KZ43YF-100 Z43XF Z43WF Z943HF-100 KZ943YF-100
|
||||||||||
|
50
|
292
|
195
|
145
|
28
|
4-25
|
112
|
300
|
|
|
|
|
65
|
330
|
220
|
170
|
32
|
8-25
|
138
|
300
|
|
|
|
|
80
|
356
|
230
|
180
|
34
|
8-25
|
148
|
350
|
|
|
|
|
100
|
432
|
265
|
210
|
38
|
8-30
|
172
|
350
|
|
|
|
|
150
|
559
|
350
|
290
|
46
|
12-34
|
250
|
400
|
Z60-18/80
|
|
|
|
200
|
660
|
430
|
360
|
54
|
12-41
|
312
|
450
|
Z90-18/80
|
|
|
|
250
|
787
|
500
|
430
|
60
|
12-41
|
382
|
500
|
Z120-18/80
|
|
|
|
300
|
838
|
585
|
500
|
70
|
16-48
|
442
|
550
|
Z180-18/80
|
|
|
|
350
|
889
|
655
|
560
|
76
|
16-54
|
498
|
600
|
Z250-18/80
|
|
|
|
400
|
991
|
715
|
620
|
80
|
16-54
|
558
|
680
|
Z250-18/80
|
|
|
